Wob-L 8150 Tank System
SKU: 8150b-30

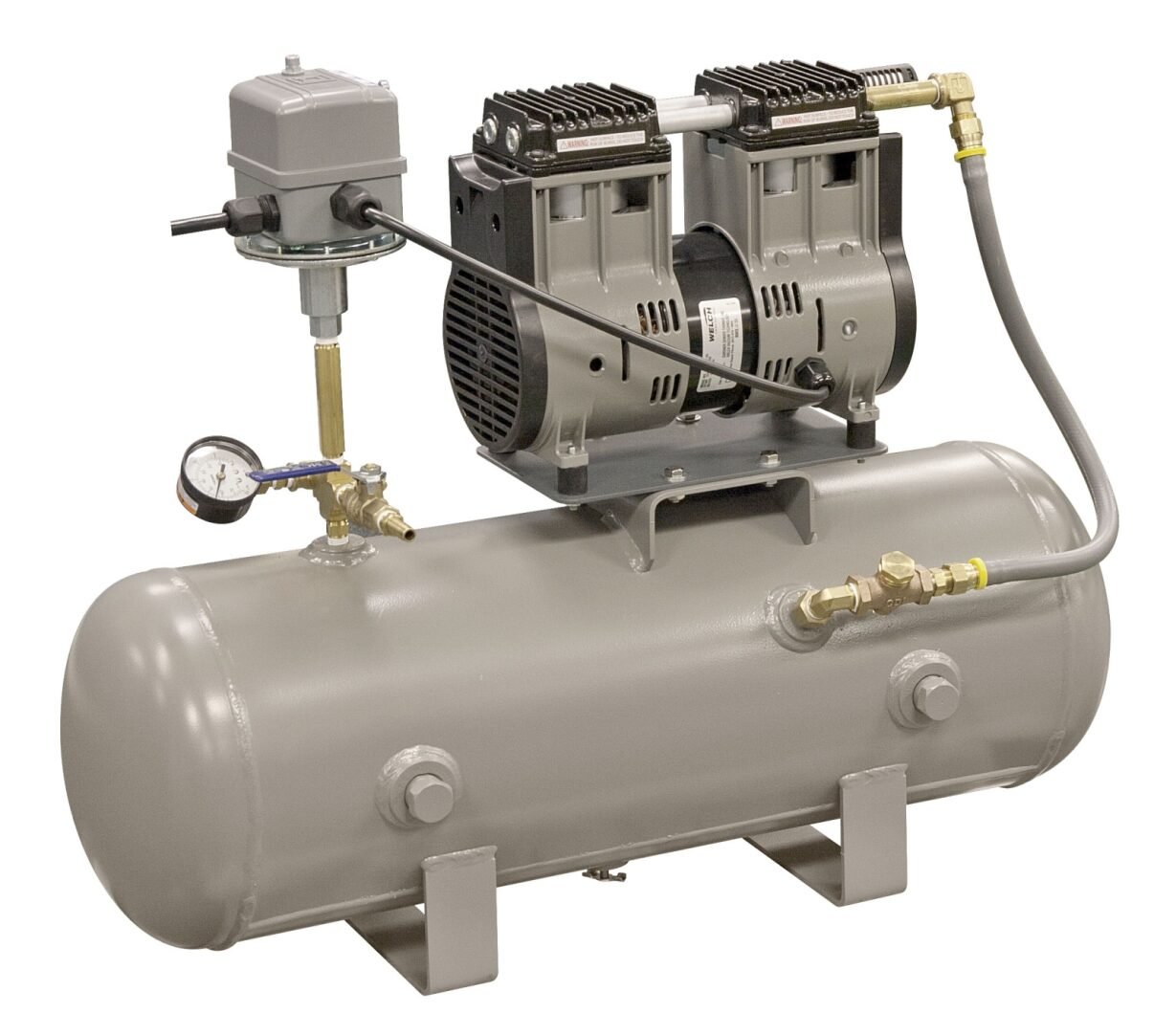

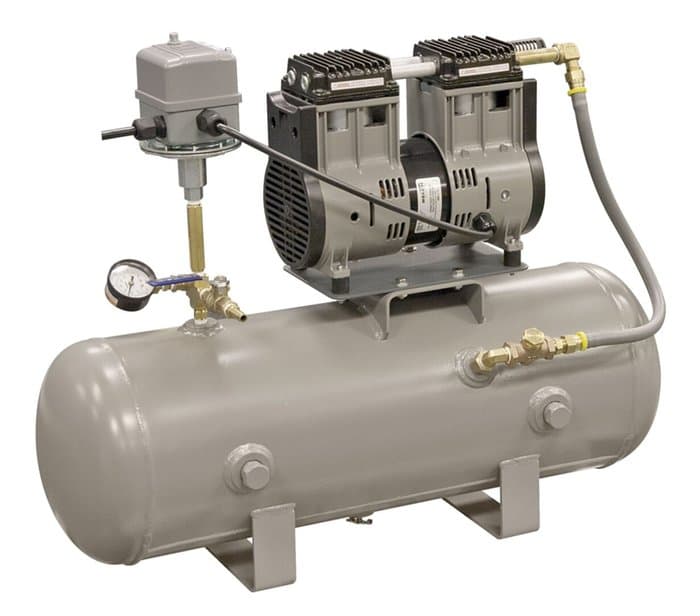

10 Gallon Wob-L Mounted Tank System
SKU: 8150b-30
- Vacuum pump mounted on a 10 gal (38 L) tank
- Vacuum reservoir for instant vacuum availability
- Includes ASME code receiver, vacuum gauge, exhaust muffler, and manual shutoff valve
- Wob-L pump is tolerant of line moisture
- Three position switch allows for on/off continuous duty
- Wired for 115V 60Hz
- Free air displacement @60Hz: 7.1 cfm (201 L/min)
- Ultimate pressure: 60 Torr (80 mbar)
$3,583.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.Operate your industrial vacuum process with instant response. This 10 gallon vacuum tank system is perfect for pick-and-place, vacuum forming, and other light industrial vacuum operations. Mounted WOB-L® piston provides powerful vacuum (to 27.6" Hg). Pump moisture resistance is far superior to graphite vane pump designs. System includes ASME code receiver, vacuum gauge, exhaust muffler, and manual shut off valve. The 3-position switch enables on/off continuous duty of automatic on/off operation at a set vacuum level. 115V, 6-ft power cord, shipped fully assembled.
Product Features:
- Instant vacuum availability
- Pump is tolerant of line moisture
- Pick and place operations
- Vacuum forming operations
Standard Duty Dry Vacuum
| Type | Free Air Displacement @60Hz | Ultimate Pressure | Model | BUY NOW |
|---|---|---|---|---|
| Chemical Duty Diaphragm Pump | 1.3 cfm (37 L/min) | 150 Torr (200 mbar) | 2019 Diaphragm Pump | BUY NOW |
| Chemical Duty Diaphragm Pump | 0.46 cfm (13 L/min) | 200 Torr (266 mbar) | Gemini 2050 | BUY NOW |
| Chemical Duty Diaphragm Pump | 0.46 cfm (13 L/min) | 200 Torr (266 mbar) | Gemini 2060 | BUY NOW |
| Single-Stage Piston Vacuum/Pressure Pump | 0.39 cfm (11 L/min) | 219 Torr (292 mbar) | Wob-L 2511 | BUY NOW |
| Single-Stage Piston Vacuum/Pressure Pump | 0.76 cfm (22 L/min) | 100 Torr (133 mbar) | Wob-L 2522 | BUY NOW |
| Single-Stage Piston Vacuum/Pressure Pump | 1.2 cfm (34 L/min) | 70 Torr (93 mbar) | Wob-L 2534 | BUY NOW |
| Single-Stage Piston Vacuum/Pressure Pump | 1.6 cfm (45 L/min) | 60 Torr (80 mbar) | Wob-L 2546 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 2.3 cfm (65 L/min) | 5 Torr (6.7 mbar) | Wob-L 2561 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 2.3 cfm (65 L/min) | 5 Torr (6.7 mbar) | Wob-L 2562 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 2.3 cfm (65 L/min) | 5 Torr (6.7 mbar) | Wob-L 2563 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 3.5 cfm (100 L/min) | 60 Torr (80 mbar) | Wob-L 2567 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 3.5 cfm (99 mbar) | 9 Torr (12 mbar) | Wob-L 2580 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 3.5 cfm (100 L/min) | 5 Torr (6.7 mbar) | Wob-L 2581 | BUY NOW |
| Single-Stage Piston Vacuum Pump | 7.1 cfm (201 L/min) | 60 Torr (80 mbar) | Wob-L 2585 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 10.6 cfm (300 L/min) | 60 Torr (80 mbar) | Wob-L 2595 | BUY NOW |
| 10 Gallon Wob-L Mounted Tank System | 7.1 cfm (201 L/min) | 60 Torr (80 mbar) | Wob-L 8150 Tank System | BUY NOW |
