Wob-L 2546
SKU: 2546b-01

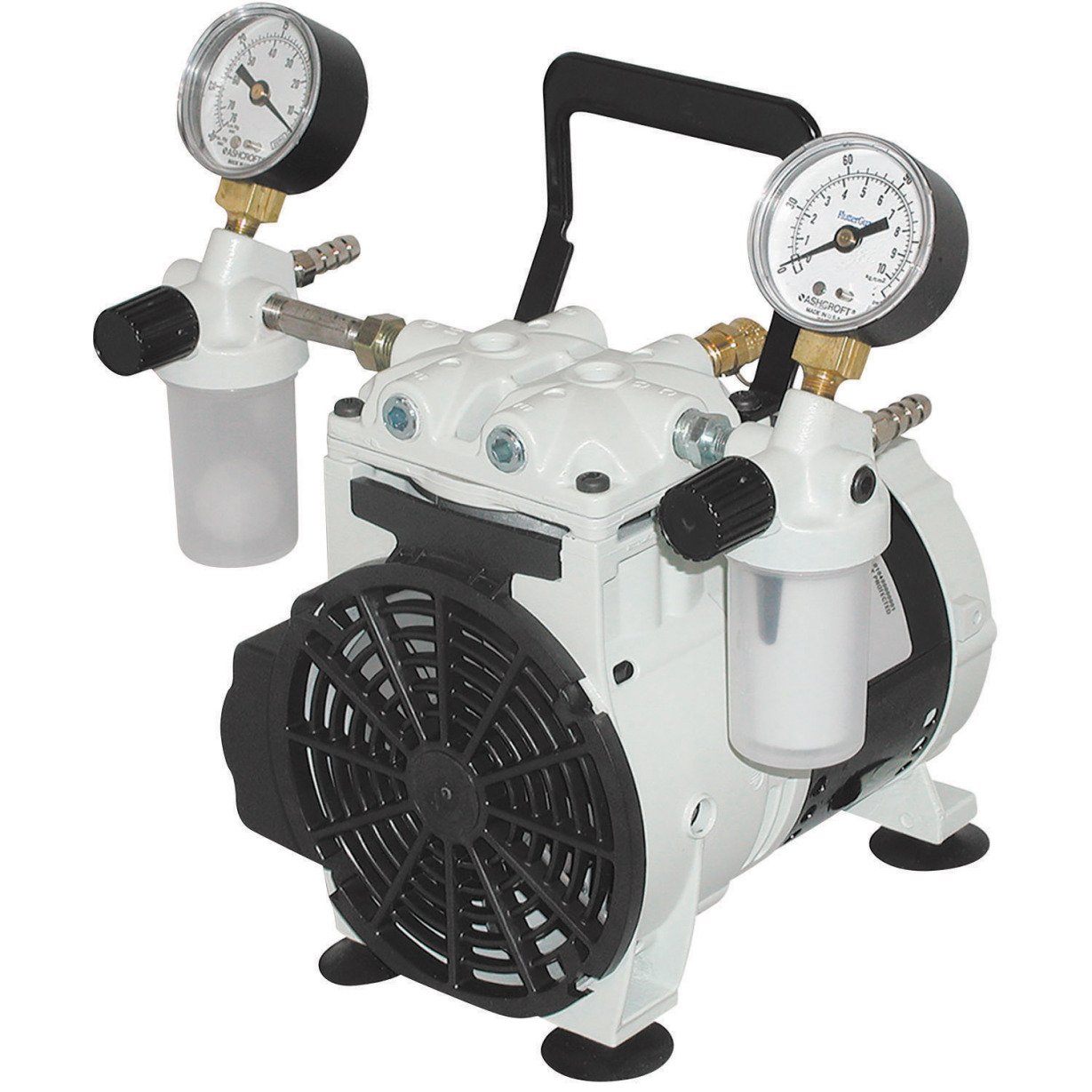

Single-Stage Piston Vacuum/Pressure Pump
SKU: 2546b-01
- Effective for standard duty applications, not strongly acidic, basic or organic vapors
- Lightweight, compact piston pump
- Comes with inlet liquid trap, vacuum regulator, water trap and muffler
- Oil-free operation for reduced maintenance
- High water vapor tolerance
- Wired for 115V 60Hz
- Free air displacement @60Hz: 1.6 cfm (45 L/min)
- Ultimate pressure: 60 Torr (80 mbar)
$1,078.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.WOB-L® 2546 dry piston pumps are a reliable partners for physical applications, notably with aqueous solutions. Being a vacuum pump and compressor, they can be used for a wide variety of applications such as filtration, gas sampling, vacuum drying, desiccation and automation technology. The integrated vacuum and pressure gauges and regulators allow the pressure to be continuously monitored and adjusted. The pump is protected by an inlet liquid trap with automatic flow stop.
For use with dry or aqueous vapor applications only.
Advantages:
- oil free
- easy to clean
- easy maintenance
- easy handling and control features
- robust construction
Standard Duty Dry Vacuum
| Type | Free Air Displacement @60Hz | Ultimate Pressure | Model | BUY NOW |
|---|---|---|---|---|
| Chemical Duty Diaphragm Pump | 1.3 cfm (37 L/min) | 150 Torr (200 mbar) | 2019 Diaphragm Pump | BUY NOW |
| Chemical Duty Diaphragm Pump | 0.46 cfm (13 L/min) | 200 Torr (266 mbar) | Gemini 2050 | BUY NOW |
| Chemical Duty Diaphragm Pump | 0.46 cfm (13 L/min) | 200 Torr (266 mbar) | Gemini 2060 | BUY NOW |
| Single-Stage Piston Vacuum/Pressure Pump | 0.39 cfm (11 L/min) | 219 Torr (292 mbar) | Wob-L 2511 | BUY NOW |
| Single-Stage Piston Vacuum/Pressure Pump | 0.76 cfm (22 L/min) | 100 Torr (133 mbar) | Wob-L 2522 | BUY NOW |
| Single-Stage Piston Vacuum/Pressure Pump | 1.2 cfm (34 L/min) | 70 Torr (93 mbar) | Wob-L 2534 | BUY NOW |
| Single-Stage Piston Vacuum/Pressure Pump | 1.6 cfm (45 L/min) | 60 Torr (80 mbar) | Wob-L 2546 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 2.3 cfm (65 L/min) | 5 Torr (6.7 mbar) | Wob-L 2561 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 2.3 cfm (65 L/min) | 5 Torr (6.7 mbar) | Wob-L 2562 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 2.3 cfm (65 L/min) | 5 Torr (6.7 mbar) | Wob-L 2563 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 3.5 cfm (100 L/min) | 60 Torr (80 mbar) | Wob-L 2567 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 3.5 cfm (99 mbar) | 9 Torr (12 mbar) | Wob-L 2580 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 3.5 cfm (100 L/min) | 5 Torr (6.7 mbar) | Wob-L 2581 | BUY NOW |
| Single-Stage Piston Vacuum Pump | 7.1 cfm (201 L/min) | 60 Torr (80 mbar) | Wob-L 2585 | BUY NOW |
| Two-Stage Piston Vacuum Pump | 10.6 cfm (300 L/min) | 60 Torr (80 mbar) | Wob-L 2595 | BUY NOW |
| 10 Gallon Wob-L Mounted Tank System | 7.1 cfm (201 L/min) | 60 Torr (80 mbar) | Wob-L 8150 Tank System | BUY NOW |
Here you can download all important information. A PDF reader is required to view the sheets.
