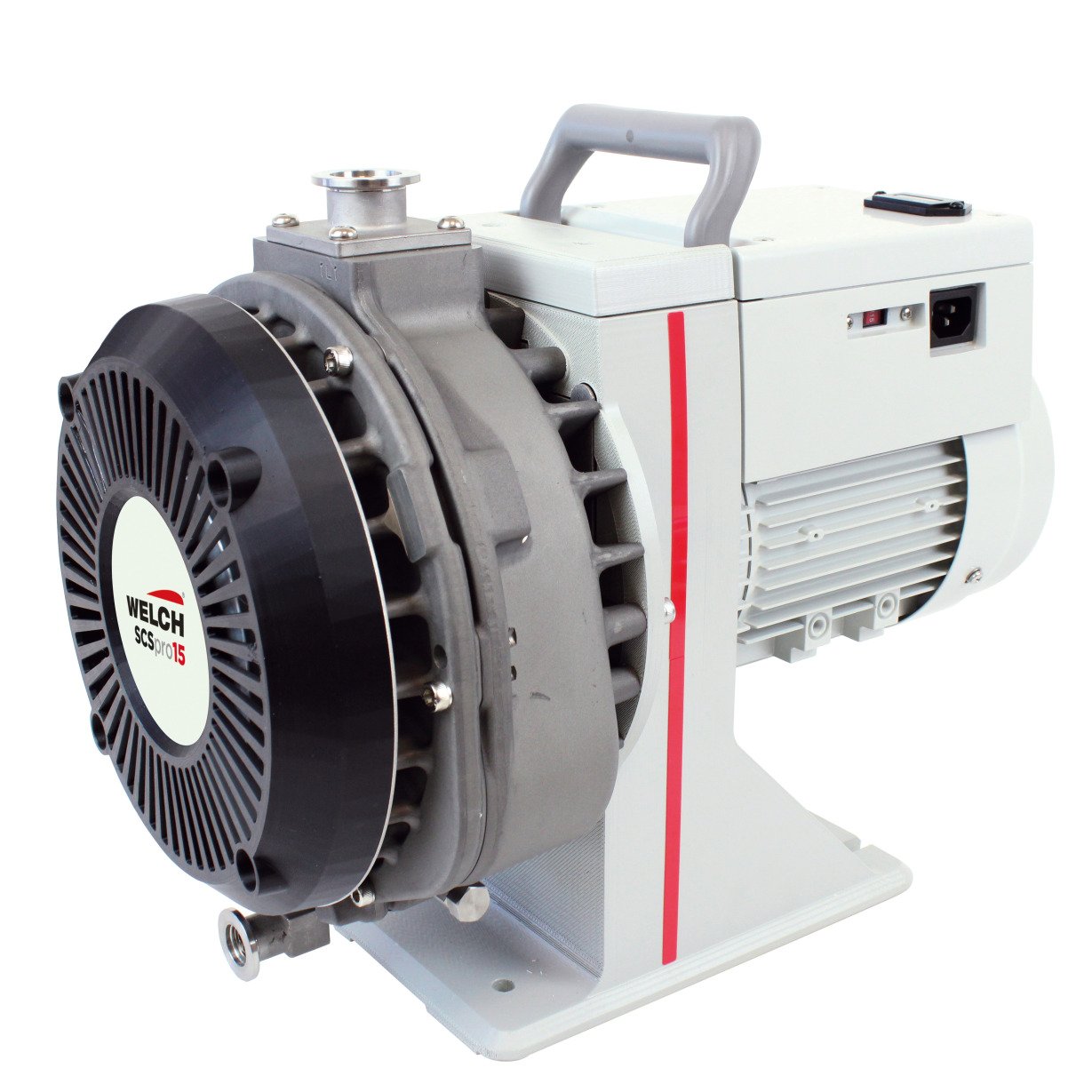

SCSpro 15
SKU: 5151-01
Self-Cleaning Scroll Pump
SKU: 5151-01
- Provides a deep vaccum with oil-free operation
- Self-cleaning function during operation without impacting vacuum
- Continuous operation between vacuum pressure and atmospheric
- Robust dual voltage/frequency motor
- Integrated hour meter for accurate servicing
- Modular design allows for fast and easy servicing
- Wired for 115V 60Hz
- Maximum pumping speed @60Hz: 9.9 cfm (280 L/min)
- Ultimate pressure: 0.012 Torr (0.016 mbar)
$7,774.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.Welch SCSpro 15 dry scroll vacuum pump generates a maximum pumping speed of 250 lpm and vacuum to 0.012 Torr(0.016 mbar). The oil-free scroll pump generates a vacuum by continuously moving pockets of captured gas that enters inlet to exhaust port via two-sided spiral mechanism.
Welch SCSpro 15 has a built-in self-cleaning air flush that removes liquefied vapors that can condense in pump from a trapped application. The air flush function doesn’t impact vacuum performance of pump.
The scroll pump is an alternate solution to oil-sealed rotary vane pumps. Common applications include freeze dryer with ultra-low temperature condenser, glove box, cold trapped vacuum oven or degassing chamber, turbo backing, and evacuation of cryogenic lines.
The SCSpro 15 is made to last with durable and reliable materials, in which:
- Scroll and body are made of anodized aluminum.
- Tip seal is made from PTFE composite.
- Exhaust valve is made with FKM.
- Inlet and exhaust ports are made from cast stainless steel
