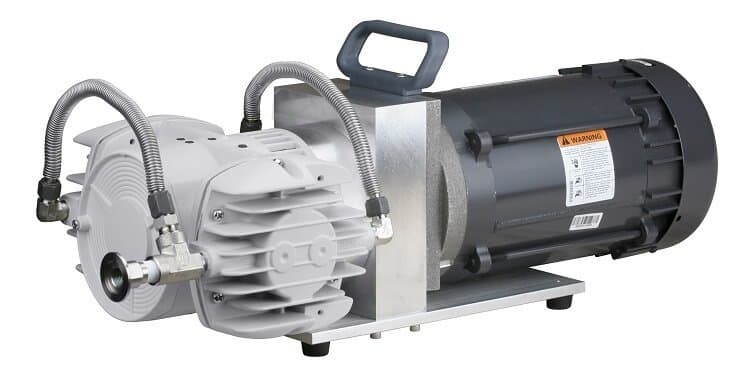

2085 XPRF Diaphragm Pump

SKU: wv_2085w-01

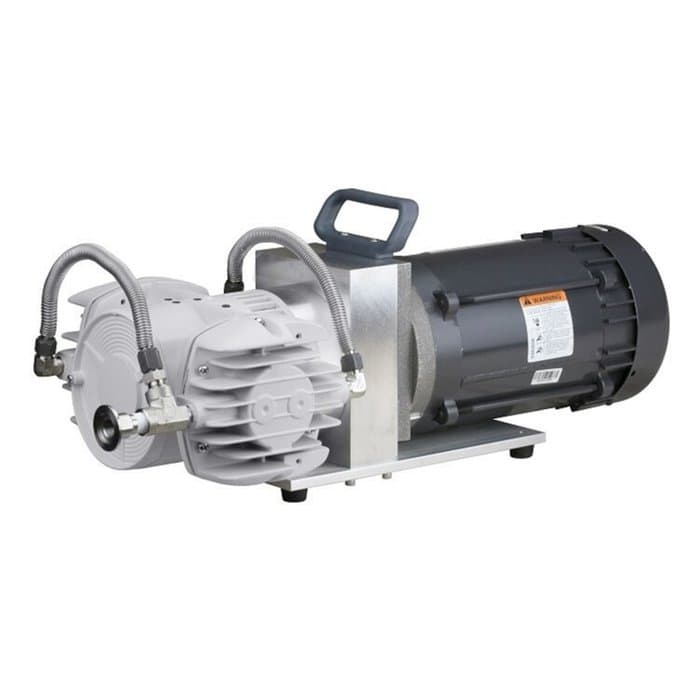

Diaphragm Pump with Explosion-Proof Motor

SKU: wv_2085w-01

Corrosion-resistant for durability
Fitted with Class I, Groups C&D explosion
proof motor (CSA/UL)
Integrated handle provides portability
Wired for 115/230V 60Hz
Free air displacement @60Hz: 6.9 cfm (195 L/min)
Ultimate Pressure: 100 Torr (133 mbar)

$8,038.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Request a Quote

Welch corrosion-resistant diaphragm vacuum pumps are driven by explosion-proof motors rated for Class I Hazardous Locations (HazLoc). The aluminum pump head is PTFE coated and diaphragm is covered by a PTFE liner to separate chemical media from the diaphragm. The explosion proof motor is directly coupled to the diaphragm pumping module. Stainless steel tubing is used to connect pump heads together in one and two-stage configurations. The vacuum pump doesn’t come with an on/off switch, plug or cord, but must be conduit wired to the on/off explosion proof control panel. Always use a certified electrician for proper installation of vacuum pump with explosion proof motor to meet your local municipal codes.
